Jaw/Spider Coupling Manufacturers

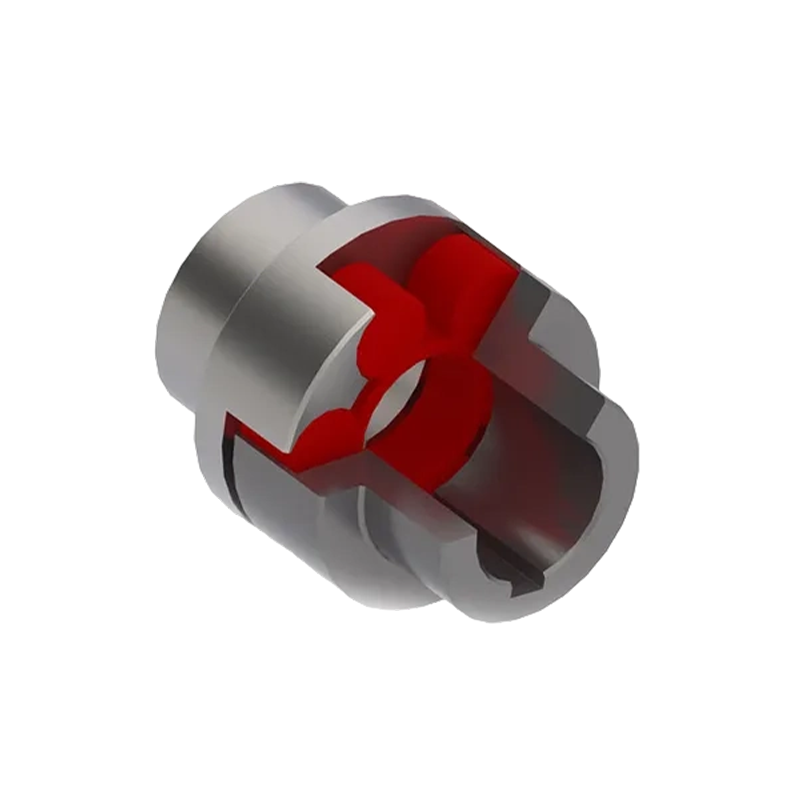

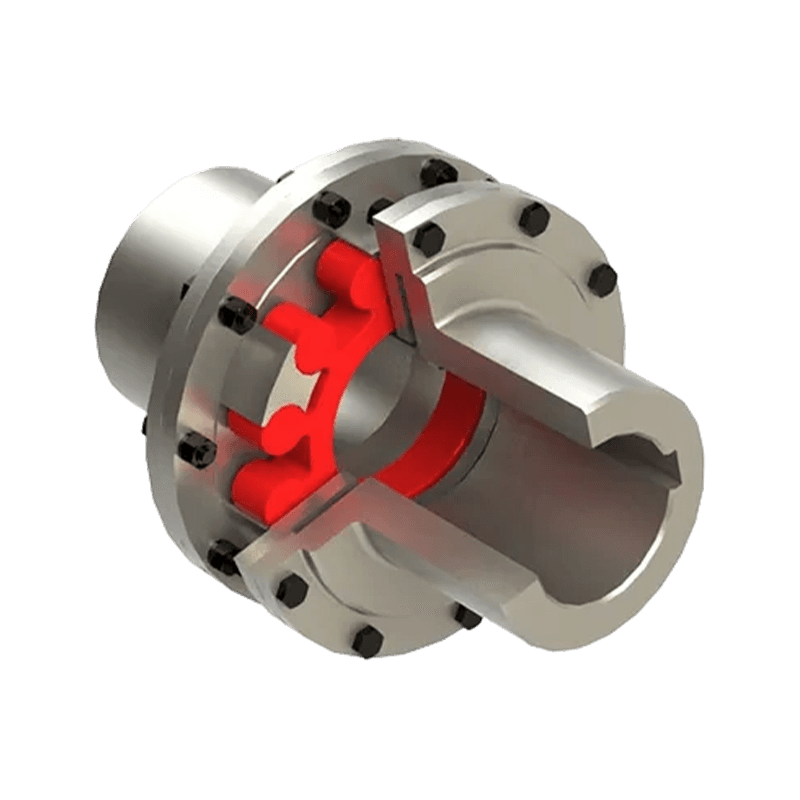

The design of a plum shaped elastic coupling focuses on stable torque transmission, vibration reduction, and the ability to accommodate shaft misalignment during mechanical operation. The structure typically consists of two precision-machined metal hubs and an elastomer insert shaped like a multi-lobed plum or star element. This design concept is closely related to the working principle of a Jaw Coupling and Spider Coupling, where a flexible element placed between two hubs absorbs shock and allows slight movement during operation. The elastomer insert is installed between the jaws of the hubs, allowing torsional flexibility while maintaining strong torque transmission efficiency. The geometry of the plum insert distributes stress across multiple contact surfaces, preventing localized concentration of force during rotation. When torque is transmitted through the coupling, the elastomer compresses slightly within the jaw slots, absorbing energy fluctuations and smoothing the power transfer process. This structural approach improves operational stability and reduces vibration across connected machinery. In addition, the design reduces metal-to-metal contact, which minimizes noise and mechanical wear during long-term operation.

Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. integrates computer-aided engineering analysis into the structural development of our couplings. Through digital modeling and mechanical simulation, we analyze deformation patterns of the elastic spider element and evaluate stress distribution during torque loading. This process allows our engineers to refine the profile of the plum-shaped insert so that our coupling maintains consistent elasticity and structural balance during operation. The modular design principle also allows the coupling to adapt to different shaft sizes and torque levels. By adjusting hub dimensions and elastomer hardness, Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. produces plum shaped elastic couplings that function similarly to advanced Jaw Coupling and Spider Coupling systems while maintaining high efficiency across a wide range of industrial applications including mining, metallurgy, water equipment, and port machinery.

Material selection directly influences the structural performance and durability of a plum shaped elastic coupling. The hubs are typically manufactured from high-strength alloy steel or carbon steel, ensuring sufficient rigidity to withstand high torque loads without deformation. Heat treatment processes improve surface hardness and fatigue resistance, allowing the hubs to maintain dimensional accuracy during continuous rotation. The design principles used in Jaw Coupling and Spider Coupling systems also apply here, where a rigid hub structure supports a flexible elastomer element that absorbs shock and vibration. The elastomer insert, commonly called a spider element, is the core component responsible for flexibility. The material used for this spider must balance elasticity, tensile strength, and fatigue resistance. If the material is too soft, torque transmission efficiency decreases; if it is too hard, vibration absorption becomes limited. Engineers must therefore select elastomers with suitable Shore hardness to match operational torque requirements. Materials such as polyurethane or specialized synthetic rubber are commonly used because of their resistance to wear, oil exposure, and temperature fluctuations.

Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. conducts comprehensive material testing to ensure consistent performance. Laboratory testing includes tensile strength evaluation, compression set measurement, dynamic fatigue testing, and thermal aging analysis. These tests confirm that the elastomer spider maintains flexibility during millions of rotational cycles without cracking or permanent deformation. The interaction between hub material and spider material also influences the overall efficiency of the coupling. The metal jaws must have smooth and precise contact surfaces so the spider element can compress evenly during torque transmission. Through optimized material combinations, Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. ensures our plum shaped elastic couplings deliver performance comparable to high-quality Jaw Coupling and Spider Coupling systems widely used in industrial power transmission. This balanced material design allows our couplings to operate reliably in demanding environments such as mining equipment, metallurgical machinery, lifting systems, and water treatment facilities.

A significant structural characteristic of a plum shaped elastic coupling is its ability to accommodate shaft misalignment while maintaining efficient torque transmission. During machinery installation or long-term operation, perfect alignment between connected shafts is rarely maintained. Thermal expansion, mechanical vibration, and structural movement can create angular, parallel, or axial misalignment. The elastic spider element inside the coupling compensates for these deviations without transferring excessive stress to the shafts or bearings. This functional concept mirrors the operating behavior of a Jaw Coupling and Spider Coupling, where the elastomer spider flexes between the metal jaws. The plum-shaped design allows controlled deformation under load, enabling the coupling to absorb alignment deviations while continuing to transmit rotational motion smoothly. The multiple lobes of the spider distribute torsional stress across several contact points, preventing localized fatigue.

Angular misalignment occurs when the two shafts intersect at a slight angle rather than forming a straight line. In this situation, the spider element flexes laterally as the hubs rotate, preventing bending stress from reaching the shafts. Parallel misalignment occurs when shafts remain parallel but shift laterally. The elastic spider absorbs this displacement through compression and expansion within the jaw slots. Axial misalignment, which can occur because of thermal growth in long shaft systems, is also accommodated through slight compression of the elastomer insert. Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. uses finite element analysis and rotational testing equipment to evaluate misalignment tolerance in our couplings. These tests measure torsional stiffness, angular flexibility, and vibration levels under simulated operating conditions. Our engineering team adjusts spider geometry and material hardness to optimize flexibility while maintaining torque capacity. Through this design approach, Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. produces plum shaped elastic couplings that provide reliable misalignment compensation similar to advanced Jaw Coupling and Spider Coupling systems used in modern industrial equipment.

Industrial machinery often operates under fluctuating load conditions, especially in equipment such as conveyors, crushers, pumps, and cranes. These machines experience torque spikes during start-up, braking, or sudden load changes. The plum shaped elastic coupling absorbs these shocks through elastic deformation of the spider insert, which functions as a torsional buffer between the two hubs. The spider element compresses slightly when torque increases suddenly, storing mechanical energy within the elastomer material. As the load stabilizes, the material gradually returns to its original shape, releasing the stored energy in a controlled manner. This process reduces sudden mechanical stress and smooths the power transmission process. The same principle is widely used in Jaw Coupling and Spider Coupling designs, where the spider element serves as a damping interface between metal hubs.

The multi-lobed plum shape improves vibration absorption by distributing compressive forces evenly across the insert. Instead of concentrating force on a single surface, each lobe participates in absorbing torsional fluctuations. This design reduces vibration amplitude and limits noise generated by rotating machinery. Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. evaluates damping performance using dynamic testing equipment that measures vibration levels, torque fluctuation response, and rotational stability. Our engineers analyze how different elastomer hardness levels influence vibration reduction and torque transmission efficiency. The results of these tests guide the design of spider inserts suitable for various industries. For example, softer elastomers provide higher damping capacity for pumps and compressors, while harder materials provide greater torque capacity for heavy-duty mining machinery. By combining optimized spider geometry with durable hub construction, Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. develops plum shaped elastic couplings that perform effectively in demanding industrial environments while sharing the same mechanical advantages found in advanced Jaw Coupling and Spider Coupling solutions.

The structural design of a plum shaped elastic coupling allows modular configuration, enabling the coupling to adapt to different machinery sizes and operational requirements. The coupling consists of two hubs and a removable spider insert, making maintenance and replacement straightforward. This modular concept is similar to the structure of a Jaw Coupling or Spider Coupling, where the elastomer element can be replaced independently of the metal hubs. Different machinery systems require different torque capacities and shaft diameters. Modular coupling design allows engineers to select appropriate hub sizes while choosing elastomer spiders with varying hardness levels. This flexibility simplifies equipment integration and ensures consistent performance across different applications. Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. manufactures a wide range of coupling sizes to support diverse industries. Our modular approach also supports customized configurations for non-standard equipment. Engineers can modify hub bore dimensions, keyway profiles, and spider hardness to match specific operating conditions.

Maintenance efficiency also improves through modular design. When the spider element experiences wear after long-term operation, technicians can remove the old insert and install a new one without dismantling the entire drive system. This reduces downtime and simplifies maintenance procedures. Through scalable design principles, Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. ensures that our plum shaped elastic couplings remain compatible with a broad range of industrial machinery while maintaining the operational flexibility typically associated with high-performance Jaw Coupling and Spider Coupling assemblies.

Accurate manufacturing processes play a significant role in the structural performance of a plum shaped elastic coupling. The hubs must be machined with high dimensional precision to maintain alignment between the connected shafts. Any imbalance or eccentricity may lead to vibration, uneven spider compression, and reduced operational lifespan. Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. operates advanced production facilities that include heavy workshops and precision workshops equipped with CNC machining centers. These facilities allow us to produce coupling hubs with precise tolerances and smooth surface finishes. During manufacturing, hub bores are machined to match shaft dimensions accurately, ensuring proper fit and torque transmission. Jaw profiles are also carefully machined so the spider insert contacts each surface evenly during rotation. This level of precision is also essential in Jaw Coupling and Spider Coupling manufacturing, where uneven surfaces could cause premature elastomer wear.

Assembly procedures are carefully controlled to ensure correct installation of the spider insert and secure attachment of the hubs to the shafts. Alignment verification and dynamic balancing tests confirm that the assembled coupling rotates smoothly without excessive vibration. Through strict quality control measures, Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. maintains consistent production standards. This ensures that our plum shaped elastic couplings deliver stable performance comparable to reliable Jaw Coupling and Spider Coupling products used in heavy industrial transmission systems.
