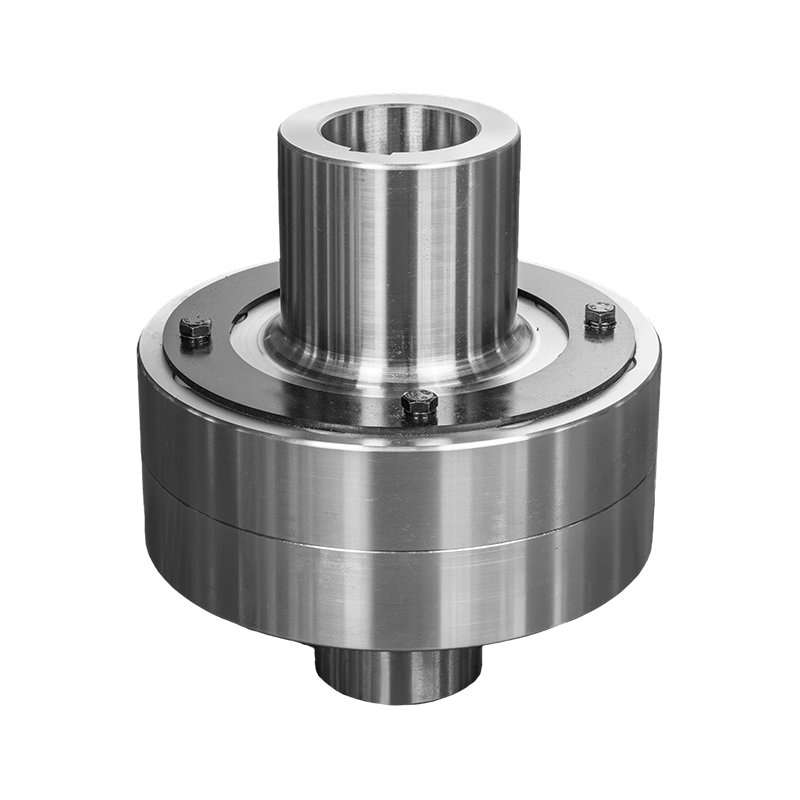

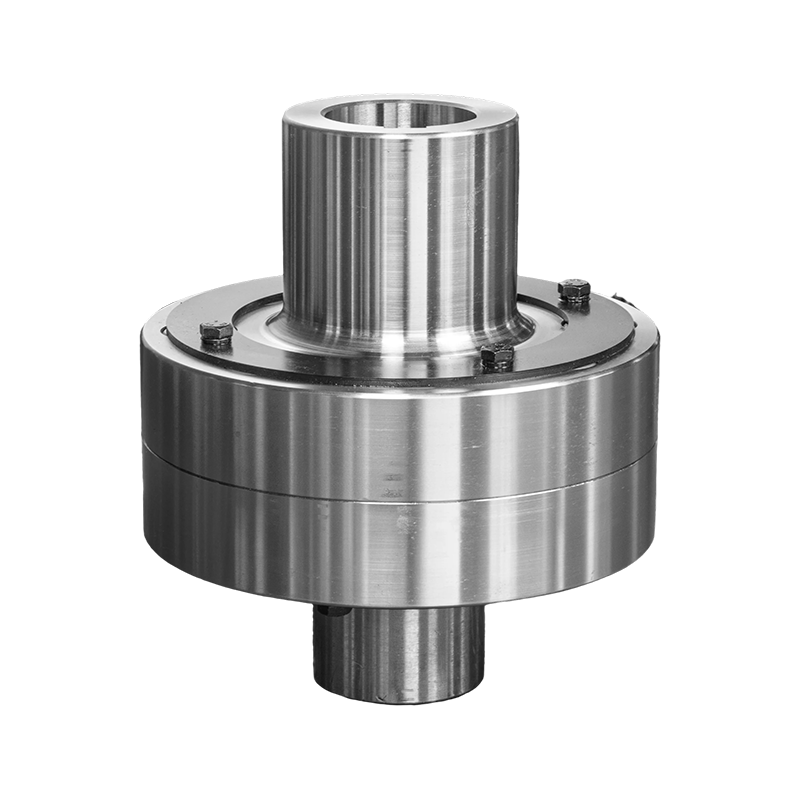

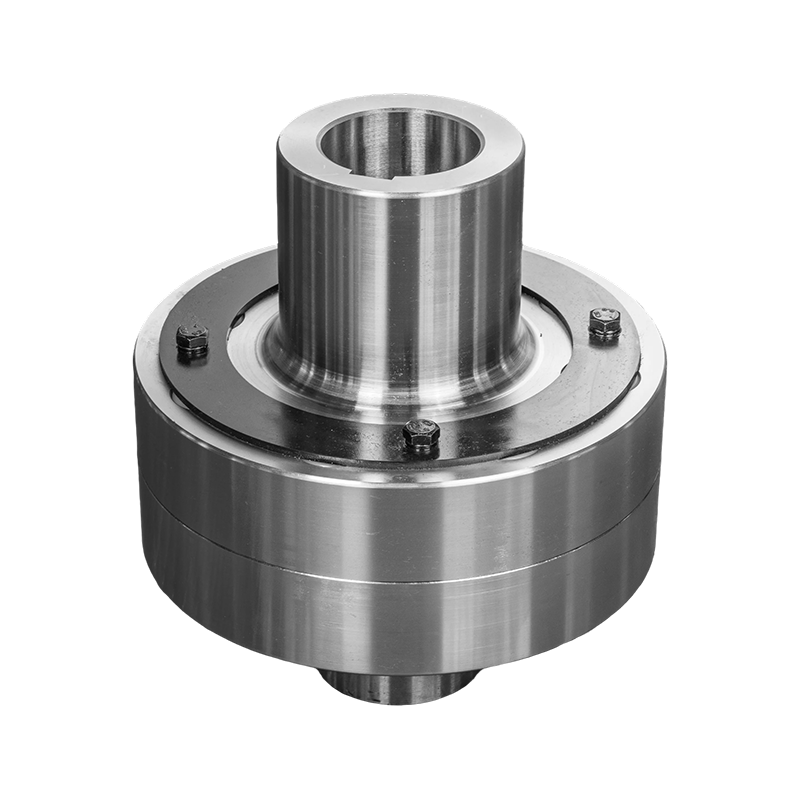

HC type elastic pin coupling(Q/YZ31001X-2018)

HC type elastic pin coupling (Q/YZ31001X-2018) is a high-performance flexible coupling that uses non-metallic elastic components and is designed strictly in accordance with the Q/YZ31001X-2018 standard. Its core advantage lies in the use of high-quality MC nylon as the elastic pin material, which not only has extremely high strength and excellent wear resistance, but also has excellent chemical stability, making it particularly suitable for harsh corrosive working environments. The coupling has a precise structure, consisting of half couplings, column pins, baffles, bolts, and washers. It can adapt to a wide temperature range of -20 ℃ to+70 ℃, ensuring stable and reliable power transmission under different climatic conditions.

In practical industrial applications, HC type elastic pin coupling (Q/YZ31001X-2018) demonstrates extremely high configuration flexibility. The shaft hole types of its two half couplings can be combined arbitrarily according to actual equipment requirements, greatly simplifying the installation and matching process. According to different specifications, the nominal torque range that can be carried extends from 250 N · m to 180000 N · m, and the maximum allowable speed can reach 8500 r/min, fully meeting various power needs from light machinery to heavy industrial equipment. With its excellent shock absorption and buffering performance and robust structural design, this product is widely used in key industrial fields such as metallurgy, mining, papermaking, lifting, and port equipment. It is an ideal choice to improve the operational efficiency and safety of mechanical systems
