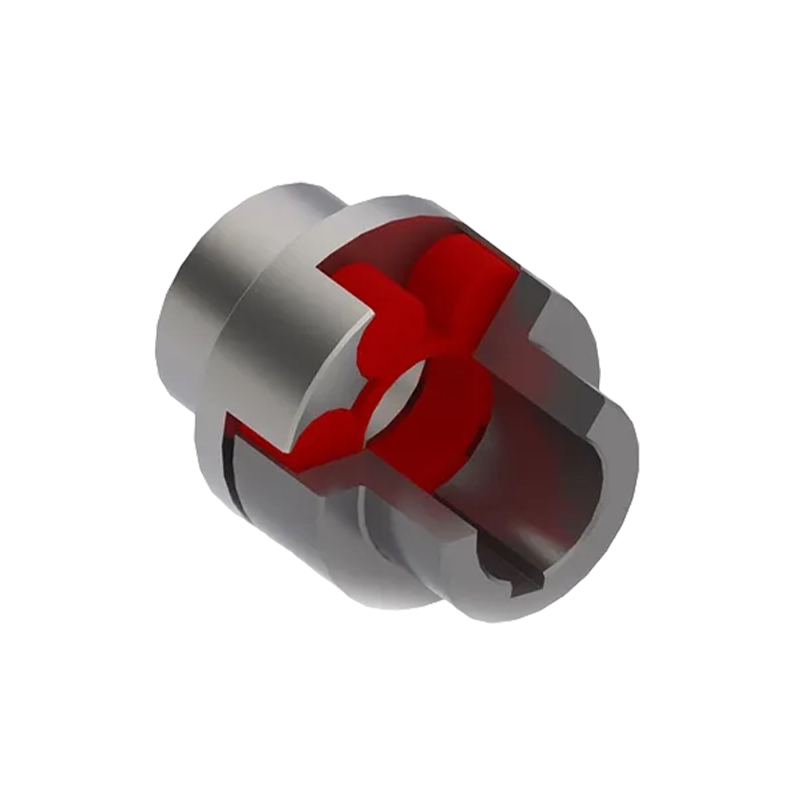

MCD type plum shaped elastic coupling(Q/YM 35013X-2018)
MCD type plum blossom shaped elastic coupling (complying with Q/YM 35013X-2018 standard) has shock absorption, wear resistance, and buffering performance, which can effectively alleviate the impact during transmission. Its environmental adaptability is also very wide, and it can maintain stable operation in the temperature range of -30 ° C to+80 ° C. In terms of key technical parameters, the MCD series provides a great selection space, with nominal torque ranging from 28 N · m to 14000 N · m, instantaneous maximum torque capable of withstanding up to 25200 N · m, and a maximum allowable speed of 8500 r/min. In order to adapt to various complex mechanical shaft systems, it supports shaft hole diameters from 12mm to 160mm and is equipped with elastic elements of different specifications from MT1 to MT14. With its robust transmission performance, the product has been widely used in heavy industrial fields such as metallurgical equipment, mining machinery, water conservancy engineering, lifting and transportation, papermaking machinery, and port facilities.
- Product Parameters
- Send Message
TECHNICAL PARAMETERS

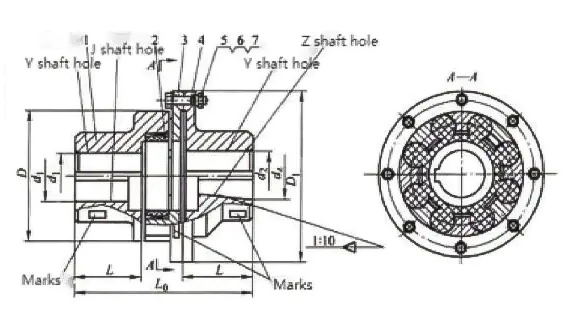

Basic parameters and main dimensions of MCD quincunx elastic coupling
| Type | Nominal torque Tn/N·m |
Maximum torque Tmax/N·m |
Allowable speed [n]/r.min⁻¹ |
Shaft hole diameter d1,d2,dz |
L | L₀ | D | D₁ | Elastic element type |
Mass m/kg |
Moment of inertia I/kg•m² |
| MCD1 | 28 | 50 | 8500 | 12,14,15,18,19,20,22,24,25 | 35 | 92 | 50 | 90 | MT1 | 1.206 | 0.00082 |
| MCD2 | 50 | 100 | 7600 | 16,18,19,20,22,24,25,28,30 | 38 | 101.5 | 60 | 100 | MT2 | 1.648 | 0.0014 |
| MCD3 | 112 | 200 | 6900 | 20,22,24,25,28,30,32 | 40 | 110 | 70 | 110 | MT3 | 2.357 | 0.0024 |
| MCD4 | 160 | 288 | 6200 | 22,24,25,28,30,32,35,38,40 | 45 | 122 | 85 | 125 | MT4 | 3.556 | 0.005 |
| MCD5 | 355 | 640 | 5000 | 25,28,30,32,35,38,40,42,45 | 50 | 138.5 | 105 | 150 | MT5 | 6.361 | 0.0135 |
| MCD6 | 450 | 810 | 4100 | 30,32,35,38,40,42,45,48 | 55 | 155 | 125 | 185 | MT6 | 10.768 | 0.0329 |
| MCD7 | 710 | 1280 | 3700 | 35*,38*,40*,42*,45,48,50,55 | 60 | 172 | 145 | 205 | MT7 | 15.302 | 0.0581 |
| MCD8 | 1250 | 2250 | 3100 | 45*,48*,50,55,56,60,63,65 | 70 | 195 | 168 | 240 | MT8 | 22.717 | 0.1175 |
| MCD9 | 2000 | 3600 | 2800 | 55*,56*,60,63,65,70,71,75,80 | 80 | 224 | 198 | 270 | MT9 | 34.439 | 0.233 |
| MCD10 | 3150 | 5670 | 2500 | 60*,63*,65*,70,71,75,80,85,90,95,100 | 90 | 248 | 228 | 305 | MT10 | 51.358 | 0.459 |
| MCD11 | 5000 | 9000 | 2200 | 70,71*,75*,80*,85*,90,95,100,110,120 | 100 | 284 | 258 | 350 | MT11 | 81.302 | 0.977 |
| MCD12 | 7100 | 12780 | 1900 | 80*,85*,90*,95*,100,110,120,125,130 | 115 | 321 | 298 | 400 | MT12 | 115.53 | 1.751 |
| MCD13 | 12500 | 22500 | 1600 | 90*,95*,100*,110*,120*,125*,130,140,150 | 125 | 348 | 358 | 460 | MT13 | 161.79 | 3.366 |
| MCD14 | 14000 | 25200 | 1500 | 100*,110*,120*,125*,130*,140,150,160 | 135 | 358 | 400 | 500 | MT14 | 196.3 | 4.867 |
Note:
1. The mass and moment ofinertia are approximate values calculated according to the material of cast steel and the largest shaft hole
2. Shaft hole diameter with*can be used for Z-type shaft hole, if according to GB/T3852 shaft hole length, negotiate with the manufacturer.
