MC plum shaped elastic coupling(Q/YM 35012X-2018)
Jaw coupling, also known as spider coupling, is equivalent to plum shaped elastic coupling.
Structure performance
1. simple structure, convenient disassembly.
2. The elastic element is embedded in the convex tooth gap on the outer edge of the end face of the two half couplings.
3. with shock absorption, wear resistance, buffer performance.
4. working temperature-30°~+80°C.
- Product Parameters
- Send Message
TECHNICAL PARAMETERS

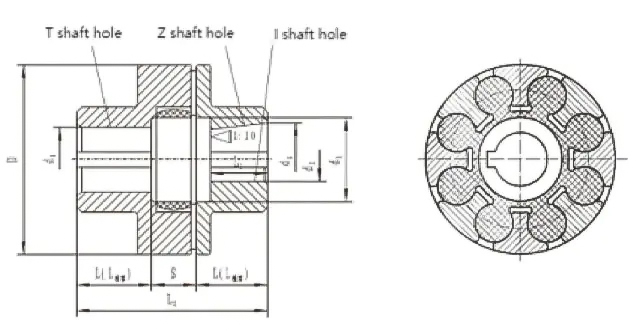

Basic parameters and main dimensions of MC quincunx elastic coupling
| Type | Nominal torque Tn/N·m |
Maximum torque Tmax/N·m |
Allowable speed [n]/r·min⁻¹ |
Shaft hole diameter d1,d2,dz |
L | L0 | D | Elastic element type |
Mass m/kg |
Moment ofinertia I/kg·m² |
| MC1 | 28 | 50 | 15300 | 12,14,15,18,19,20,22,24,25 | 35 | 86 | 50 | MT1 | 1 | 0.00022 |
| MC2 | 50 | 100 | 12000 | 16,18,19,20,22,24,25,28,30 | 38 | 95 | 60 | MT2 | 1.5 | 0.00044 |
| MC3 | 112 | 200 | 10900 | 20,22,24,25,28,30,32 | 40 | 103 | 70 | MT3 | 2.5 | 0.00087 |
| MC4 | 160 | 288 | 9000 | 22,24,25,28,30,32,35,38,40 | 45 | 114 | 85 | MT4 | 3.42 | 0.002 |
| MC5 | 355 | 640 | 7300 | 25,28,30,32,35,38,40,42,45 | 50 | 127 | 105 | MT5 | 5.15 | 0.0049 |
| MC6 | 450 | 810 | 6100 | 30,32,35,38,40,42,45,48 | 55 | 143 | 125 | MT6 | 10.1 | 0.0114 |
| MC7 | 710 | 1280 | 5300 | 35*,38*,40*,42*,45,48,50,55 | 60 | 159 | 145 | MT7 | 13.1 | 0.0232 |
| MC8 | 1250 | 2250 | 4500 | 45*,48*,50,55,56,60,63,65 | 70 | 181 | 168 | MT8 | 21.2 | 0.0468 |
| MC9 | 2000 | 3600 | 3750 | 55*,56*,60,63,65,70,71,75,80 | 80 | 208 | 198 | MT9 | 33 | 0.1041 |
| MC10 | 3150 | 5670 | 3250 | 60*,63*,65*,70,71,75,80,85,90,95,100 | 90 | 230 | 228 | MT10 | 45.5 | 0.2105 |
| MC11 | 5000 | 9000 | 3000 | 70,71*,75*,80*,85*,90,95,100,110,120 | 100 | 260 | 258 | MT11 | 75.2 | 0.4338 |
| MC12 | 7100 | 12780 | 2500 | 80*,85*,90*,95*,100,110,120,125,130 | 115 | 297 | 298 | MT12 | 99.2 | 0.82 |
| MC13 | 12500 | 22500 | 2150 | 90*,95*,100*,110*,120*,125*,130,140,150 | 125 | 323 | 358 | MT13 | 148.1 | 1.672 |
| MC14 | 14000 | 25200 | 1900 | 100*,110*,120*,125*,130*,140,150,160 | 135 | 333 | 400 | MT14 | 197.5 | 2.499 |
Note:
1. The mass and moment of inertia are approximate values calculated according to the material of cast steel and the largest shaft hole
2. Shaft hole diameter with*can be used for Z-type shaft hole, if according to GB/T3852 shaft hole length, negotiate with the manufacturer.
