The function of the three-coordinate measuring instrument in relation to the coupling

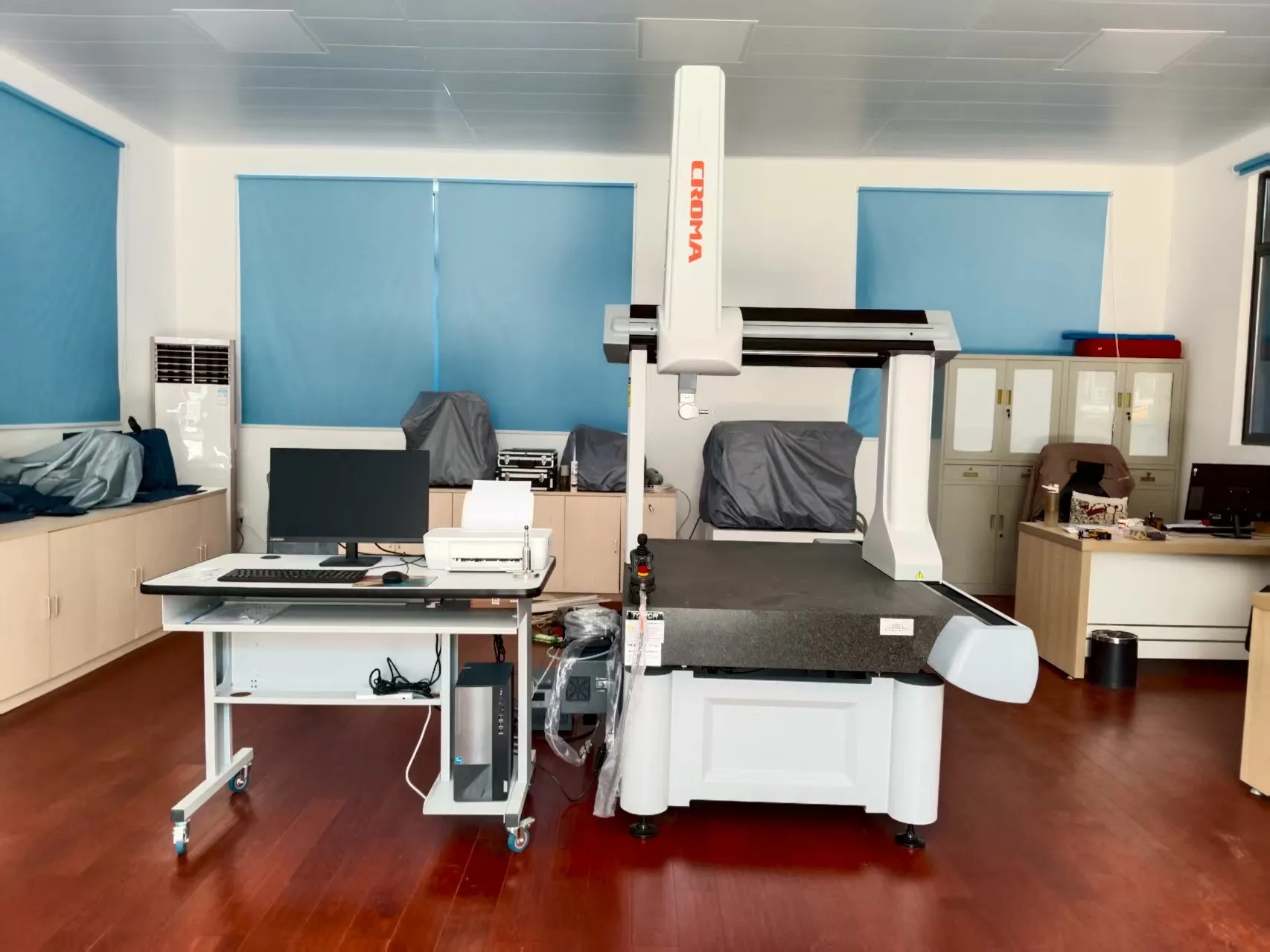

Our company has recently introduced an advanced three-coordinate measuring instrument.

A three-coordinate measuring instrument (CMM) is a highly precise measuring device, widely used in manufacturing, aerospace, automotive manufacturing, and other fields. For the measurement and inspection of couplings, the three-coordinate measuring instrument plays the following important roles:

 1. Dimension measurement:

 The three-coordinate measuring instrument can precisely measure various parameters of the coupling, such as length, width, height, angle, curvature, etc., with an accuracy of up to 0.001 millimeters. This is crucial for ensuring that the dimensions of the coupling meet the design requirements.

 2. Shape and position detection:

The three-coordinate measuring instrument can detect the geometric shape and positional relationship of the coupling, including roundness, parallelism, perpendicularity, etc., for geometric accuracy. These parameters are very important for the performance and installation of the coupling.

 3. Profile accuracy measurement:

The three-coordinate measuring instrument can precisely measure the profile of the coupling to ensure that its surface shape meets the design requirements. This is very important for ensuring the stability and reliability of the coupling during operation.

 4. Automated measurement and data processing:

The three-coordinate measuring instrument is equipped with high-precision probes and a computer control system, enabling automated measurement and data processing. This not only improves measurement efficiency but also reduces human errors.

5. Optical scanning of complex parts:

For some complex-shaped couplings, the three-coordinate measuring instrument can measure them through optical scanning to obtain detailed three-dimensional data. This is very useful for the detection and quality control of complex parts.

6. Quality control:

Using the measurement data from the three-coordinate measuring instrument, the quality of the coupling can be controlled to ensure it meets international standards and industry norms. This is of great significance for enhancing product competitiveness and market share.

In mechanical manufacturing, the three-coordinate measuring instrument can be used to measure the geometric accuracy and profile accuracy of the coupling, ensuring its stability and reliability during operation.
