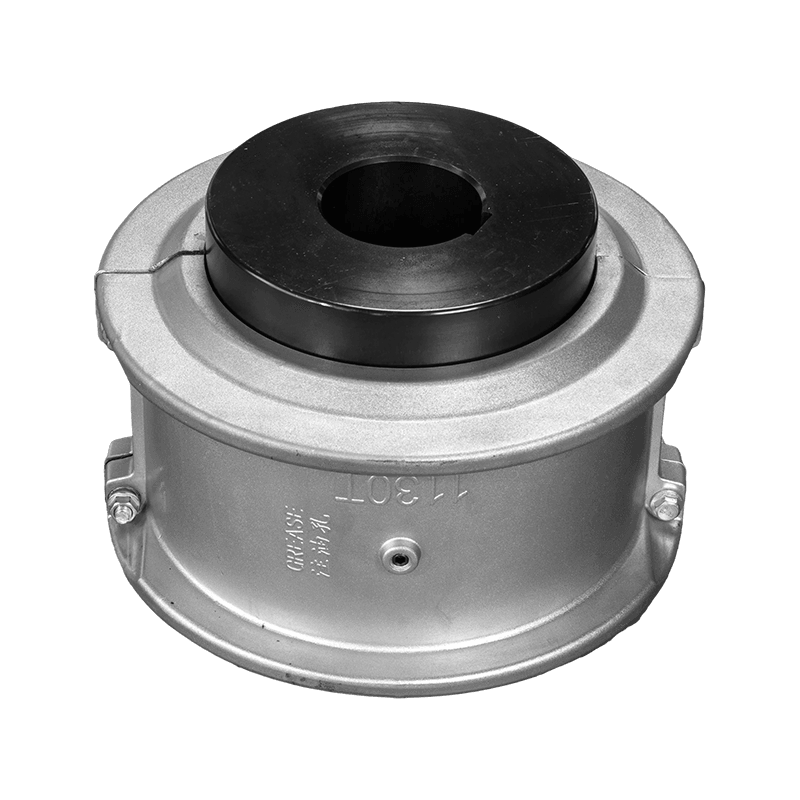

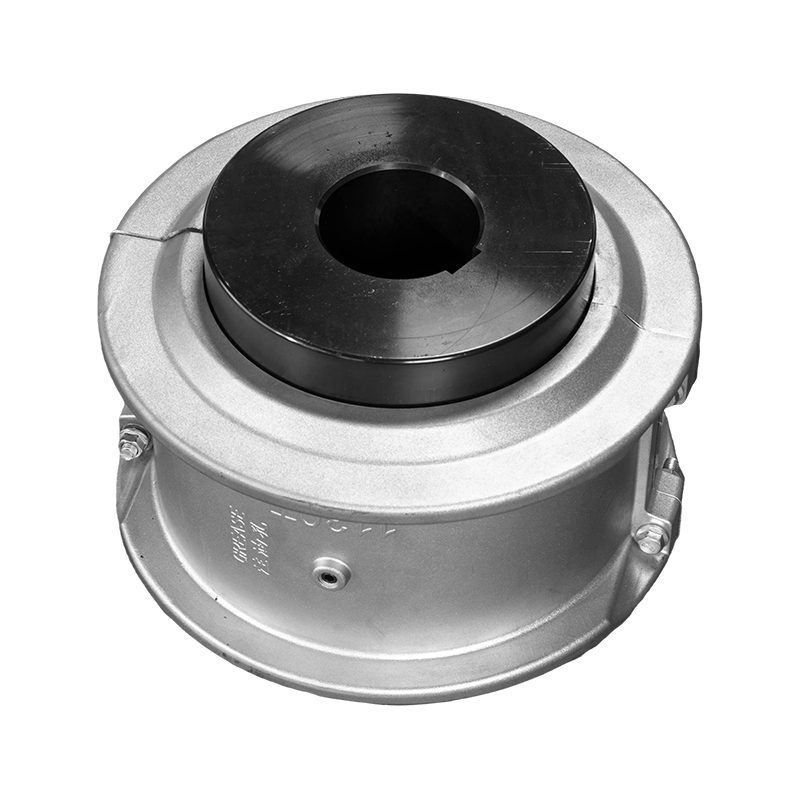

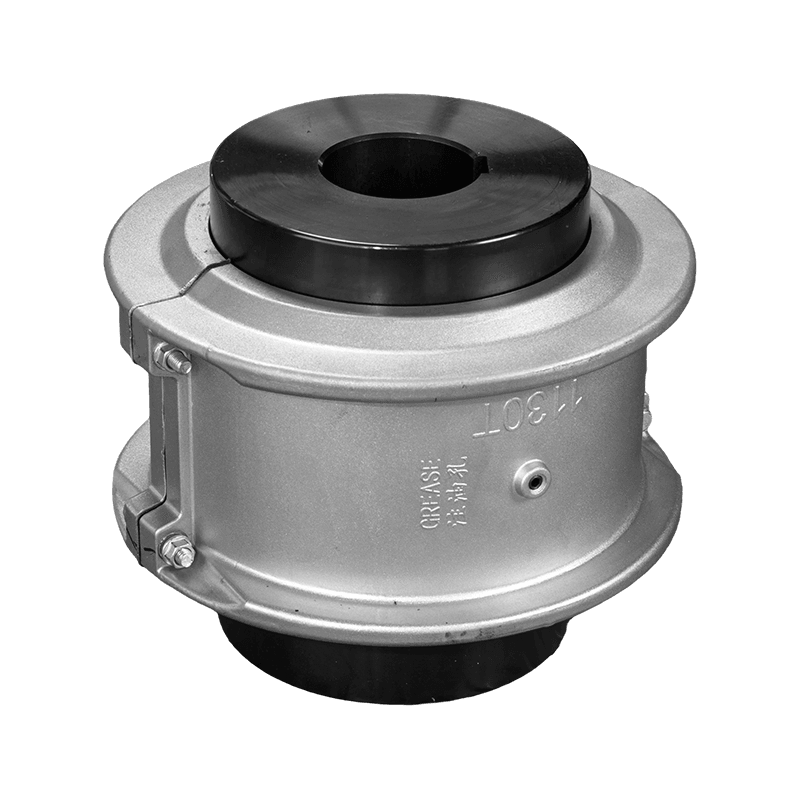

SC type snake spring coupling(Q/YS 23006X-2018)

Home / Products / Flexible Couplings with Metal Elastic Elements / SC type snake spring coupling(Q/YS 23006X-2018)
SC type snake spring coupling(Q/YS 23006X-2018)

SC type snake spring coupling(Q/YS 23006X-2018)

Overview

SC Type Snake Spring Coupling is a flexible coupling designed for power transmission applications. This type of coupling is known for its ability to handle misalignment and absorb shocks and vibrations, making it suitable for a variety of industrial applications. The "SC" in its name typically stands for "Snake Spring Coupling," reflecting its unique design which resembles a coiled snake or spring.

Design and Construction

  • Material: SC Type Snake Spring Couplings are usually made from high-quality steel or alloy materials to ensure durability and strength. The flexible element (the "snake spring") is often made from specially treated spring steel to provide optimal flexibility and resilience.

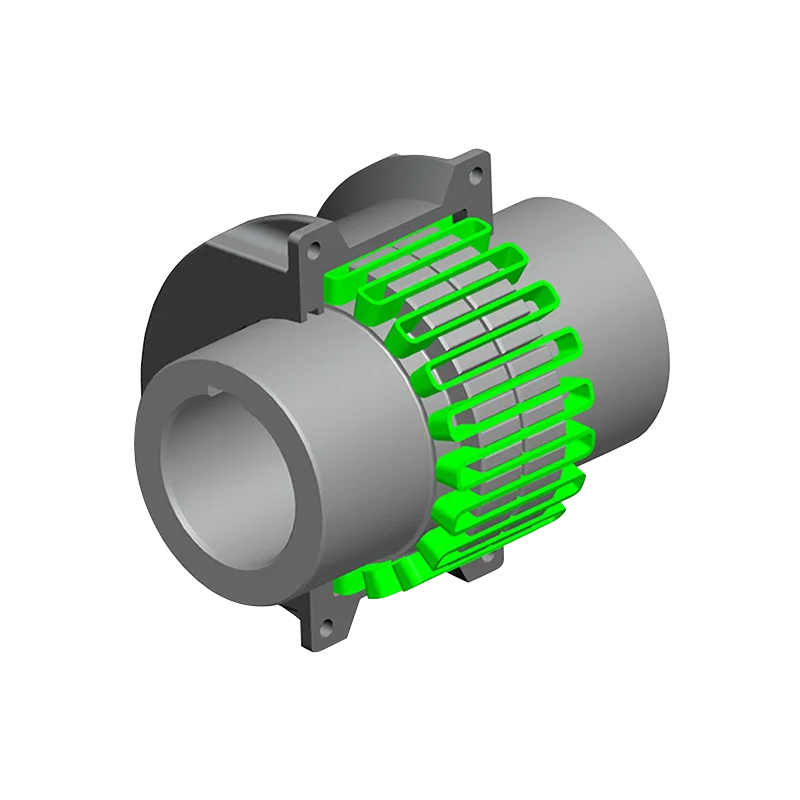

  • Structure: The coupling consists of two hubs (one on each shaft to be connected) and a coiled spring element that fits between the hubs. The spring element allows for flexibility and movement, accommodating misalignment between the shafts.
  • Sizes and Capacities: Available in various sizes to accommodate different shaft diameters and torque requirements. The specific dimensions and capacities depend on the manufacturer and the application.

Features

  • Flexibility: Capable of handling angular, radial, and axial misalignment, reducing stress on connected machinery components.
  • Shock Absorption: The spring element can absorb shocks and vibrations, protecting the machinery from sudden impacts and prolonging the life of the components.
  • High Torque Capacity: Suitable for applications requiring the transmission of high torque, ensuring efficient power transfer.
  • Low Maintenance: Typically requires minimal maintenance due to its robust construction and the inherent durability of the materials used.

Applications

SC Type Snake Spring Couplings are widely used in various industries, including:

  • Automotive: Connecting engine components and drive shafts.
  • Manufacturing: Used in conveyors, pumps, and compressors to connect different machinery parts.
  • Aerospace: For connecting components in aircraft machinery where reliability and shock absorption are critical.
  • Power Generation: Used in turbines and generators to ensure smooth power transmission.

Advantages

  • Durability: Made from high-quality materials, ensuring a long operational life.
  • Versatility: Can be used in a wide range of applications and industries.
  • Cost-Effective: Reduces maintenance costs and downtime due to its ability to handle misalignment and absorb shocks.
  • Efficiency: Ensures efficient power transmission with minimal loss, contributing to the overall efficiency of the machinery.

Disadvantages

  • Initial Cost: May have a higher initial cost compared to simpler coupling types.
  • Installation Complexity: Requires careful installation to ensure optimal performance and to handle misalignment effectively.

Maintenance Tips

  • Regular Inspection: Periodically check for wear and tear, especially on the spring element, to ensure it remains in good condition.
  • Lubrication: Some designs may require periodic lubrication to maintain smooth operation.
  • Alignment Check: Ensure that the shafts are properly aligned during installation and check alignment periodically to prevent excessive wear on the coupling.

Conclusion

The SC Type Snake Spring Coupling is a versatile and robust solution for many industrial power transmission needs. Its ability to handle misalignment, absorb shocks, and transmit high torque makes it a preferred choice in various applications. Proper maintenance and regular inspections will ensure the coupling operates efficiently and has a long service life.
