LC roller chain coupling(Q/YL 17031X-2018)

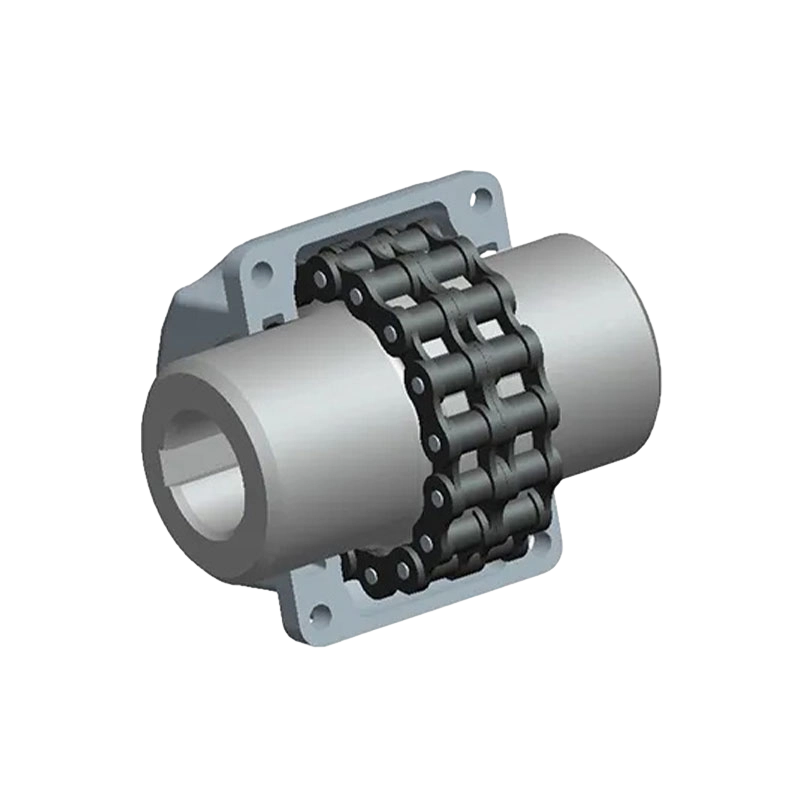

The LC type roller chain coupling adopts a combination structure of double-row chain and parallel sprockets, possessing excellent multi-directional displacement compensation performance, with axial displacement compensation up to 9.5mm and radial displacement compensation up to 1.27mm. This series has a nominal torque range of 40 to 25,000 N·m, and a maximum speed of 4500 r/min with a protective cover, ensuring stable and efficient power transmission under heavy load and high-speed conditions.

The LC type roller chain coupling has a streamlined structure, allowing for chain installation and removal without moving the two shafts, greatly simplifying maintenance procedures. It is particularly suitable for harsh industrial environments such as humid, dusty, and high-temperature conditions. Despite its strong environmental adaptability, use should be avoided under conditions of frequent start-stop, reversal, or severe impact loads to ensure the long-term reliability of the transmission system.

PDF Download

PREV: KC type roller chain coupling(Q/YL 17032X-2018)
NEXT: QGCA type cylindrical shaft hole coupling spherical roller coupling (Q/YJ 16030X-2018)

Product Parameters

Send Message

TECHNICAL PARAMETERS

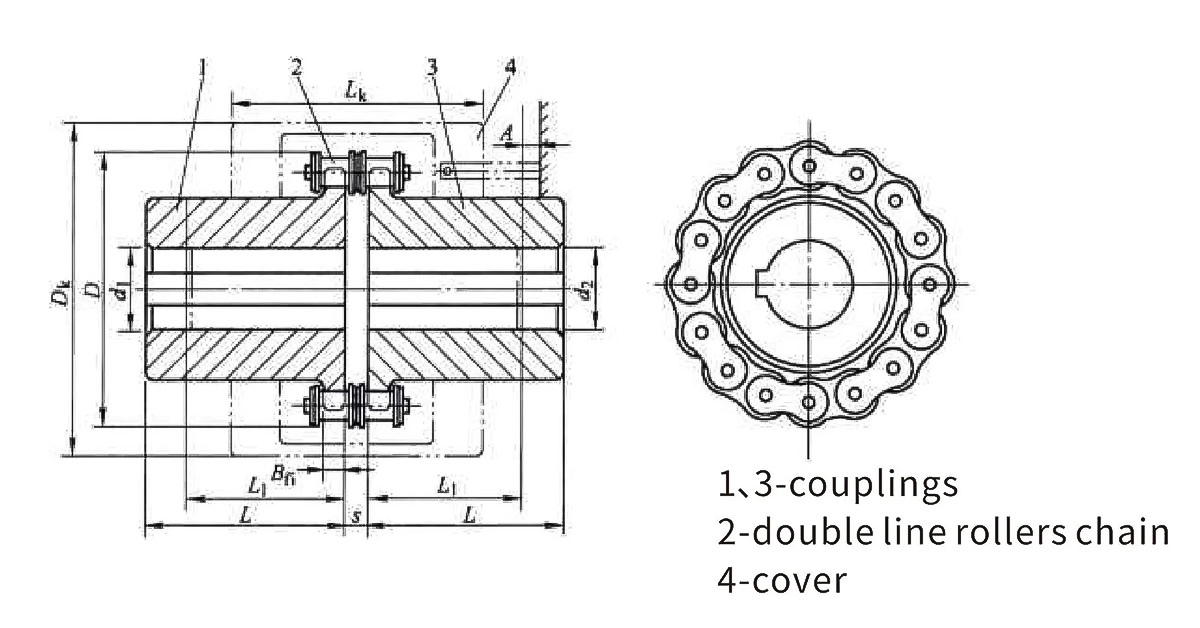

Basic parameters and main dimensions of LC roller chain coupling (GB/T6069-2002)

Type	Nominal torque N.m	Allowable speed [n]/r.min⁻¹		Shaft hole diameter d₁,d₂	Shaft hole length		Chain number	Chain pitch	Gear number	D	b_n	S	D_k max	L_k max	Mass m/kg	Moment of inertia l/kg·m²	Allowable compensation amount
		No cover	With cover		Y	J₁											Radial △	Axial △	Angular △a/(°)
LC1	40	1400	4500	16.18.19.	42		06B	9.525	14	51.06	5.3	4.9	70	70	0.4	0.0001	0.19	1.414	1
				20	52	38
LC2	63	1250	4500	19	42		06B	9.525	16	57.08	5.3	4.9	75	75	0.7	0.0002	0.19	1.414	1
				20.22.24	52	38
LC3	100	1000	4000	20.22.24	52	38	08B	12.7	14	68.88	7.2	6.7	85	80	1.1	0.00038	0.25	1.9	1
				25	62	44
LC4	160	1000	4000	24	52		08B	12.7	16	76.91	7.2	6.7	95	88	1.8	0.00086	0.25	1.9	1
				25.28.	62	44
				30.32.	82	60
LC5	250	800	3150	28	62		10A	15.875	16	94.46	8.9	9.2	112	100	3.2	0.0025	0.32	2.3	1
				30.32.35.38	82	64
				40	112	84
LC6	400	630	2500	32.35.38	82	60	10A	15.875	20	116.57	8.9	9.2	140	105	5	0.0058	0.32	2.3	1
				40.42.45.48.50	112	84
LC7	630	630		40.42.45.48.50.55	112	84	12A	19.05	18	127.78	11.9	10.9	150	122	7.4	0.012	0.38	2.8	1
				60	142	107
LC8	1000	500	2240	45.48.50.55	112	84	16A	25.4	16	154.33	15	14.3	180	135	11.1	0.025	0.5	3.8	1
				60.65.70	142	107
LC9	1600	400	2000	50.55.	112	84	16A	25.4	20	186.5	15	14.3	215	145	20	0.0061		3.8	1
				60.65.70.75	142	107
				80	172	132
LC10	2500	315	1600	60.65.70.75	142	107	20A	31.75	18	213.02	18	17.8	245	165	26.1	0.079	0.63	4.7	1
				80.85.90	172	132
LC11	4000	250	1500	75	142	167	24A	38.1	16	213.49	24	21.5	270	195	39.2	0.188	0.76	5.7	1
				80.85.90.95	172	132
				100	212	167
LC12	6300		1250	85.90.95	172	167	28A	44.45	16	270.08	24	24.9	310	205	59.4	0.38	0.88	6.6	1
				100.110.120	212	202
LC13	10000	200	1120	100.110.120.125	212	167	32A	50.8	18	340.8	30	28.6	380	230	86.5	0.869	1	7.6	1
				130.140.	252	202
LC14	16000	200	1000	120.125.	212	167	32A	50.8	22	405.22	30	28.6	450	250	150.8	2.06	1	7.6	1
				130.140.150	252	202
				160	302	242
LC15	25000	200	900	140.150.	252	202	40A	63.5	20	466.25	36	35.6	510	285	234.4	4.37	1.27	9.5	1
				160.170.180	302	242
				190	352	282

Note:

1. When there is a cover, add "F" after the model, 1 case of GL5 coupling, and change to GL5F when there is a cover.
2. The coupling mass and moment of inertia in the table are approximate values.
