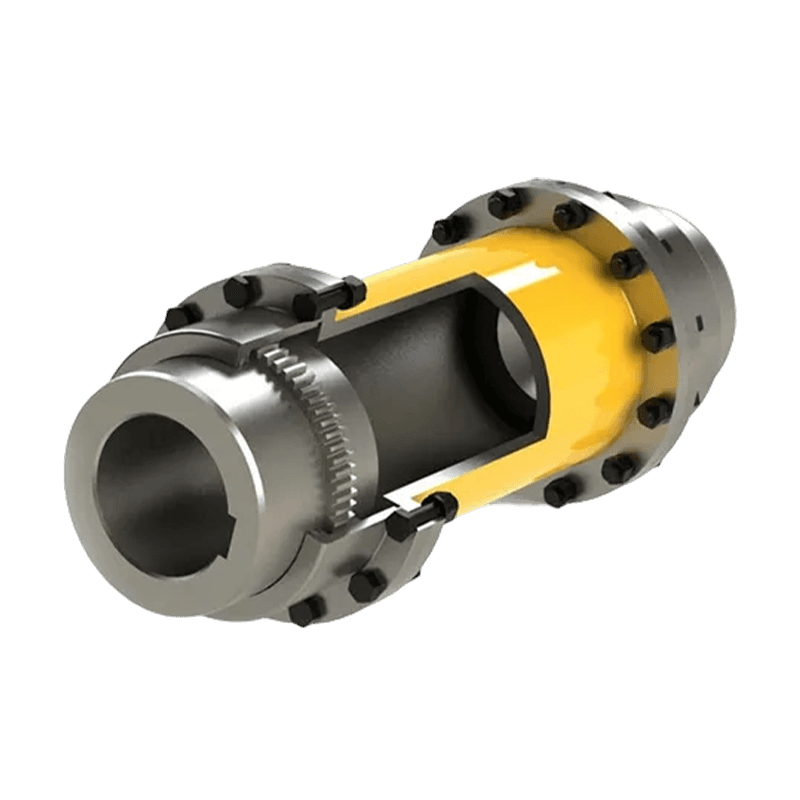

GCT Connected to intermediate sleeve drum gear coupling(Q/YG 13013X-2018)

Introduction:
The GCT (Generic Component/Technology) Connected to Intermediate Sleeve Drum Gear Coupling is a sophisticated engineering solution designed to optimize the transmission of mechanical power between rotating shafts. This coupling is a crucial element in various industrial applications where precise and reliable torque transfer is essential.

Key Features:

1. Intermediate Sleeve Drum Design: The coupling features an innovative intermediate sleeve drum design, enhancing its ability to accommodate misalignments and reduce stress on connected shafts. This design ensures smooth operation and minimizes wear and tear.
2. High-Quality Materials: Manufactured using high-grade materials, the GCT ensures durability and resistance to harsh operating conditions. The materials are carefully selected to withstand temperature variations, corrosive environments, and heavy loads, contributing to a longer lifespan.
3. Efficient Power Transmission: The coupling is engineered for efficient power transmission, providing a seamless connection between rotating shafts. Its design minimizes backlash and ensures that the transferred torque is accurate and reliable, making it suitable for precision applications.
4. Easy Installation and Maintenance: The GCT is designed with ease of installation and maintenance in mind. Its user-friendly features simplify the assembly process, and periodic maintenance requirements are minimal, contributing to overall cost-effectiveness.
5. Versatility: The GCT Connected to Intermediate Sleeve Drum Gear Coupling is versatile and adaptable to various industrial settings, including manufacturing, mining, and power generation. Its compatibility with different shaft sizes and types makes it a versatile choice for diverse applications.

Applications:

The GCT Connected to Intermediate Sleeve Drum Gear Coupling finds applications in industries that demand reliable and efficient power transmission.
Common usage includes conveyors, pumps, compressors, and other machinery where rotational movement is critical.
Conclusion: With its innovative design, high-quality construction, and versatile applications, the GCT Connected to Intermediate Sleeve Drum Gear
Coupling stands as a reliable solution for industries seeking precision and efficiency in mechanical power transmission.

PDF Download

PREV: GCC Vertical installation drum gear coupling(Q/YG 13014X-2018)
NEXT: GCP Drum gear coupling with brake disc(Q/YG 13012X-2018)

Product Parameters

Send Message

TECHNICAL PARAMETERS

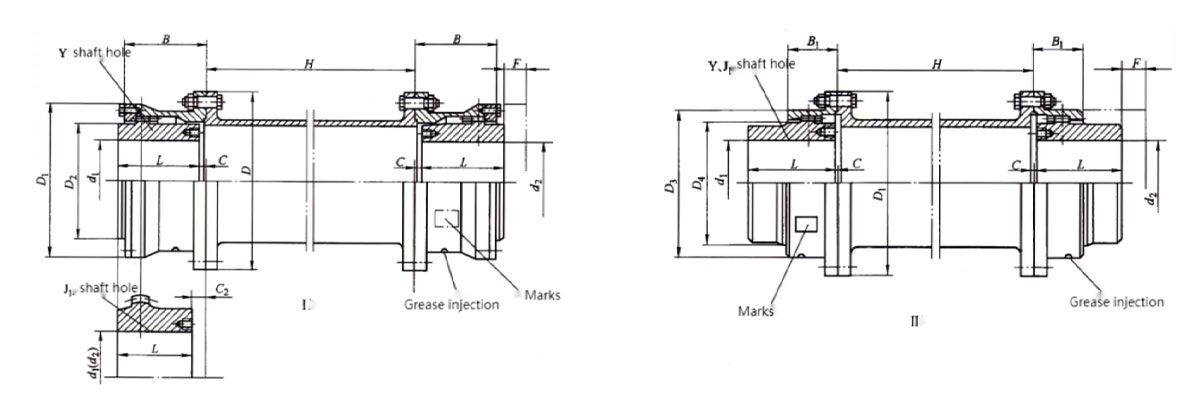

Basic parameters and main dimensions of GCT type coupling with middle sleeve drum gear

Type	Nominal torque Tn/KN·m	Shaft hole diameter d₁,d₂	Shaft hole length L		D	D₁	D₂	D₃	D₄	B	B₁	F	H min	C		C₂	Mass/kg		Moment of inertia /kg·m²		Grease/kg
			Y	J₁										Ⅰ	Ⅱ		Ⅰ	Ⅱ	Ⅰ	Ⅱ	Ⅰ	Ⅱ
GCT1	800	1214	32	—	122	115	98	88	60	58	50	30	75	30	—	—	5.66	4.86	0.008	0.0063	0.085	0.04
		16,18,19	42	—										20	14	—
		20,22,24	52	—										10	4	—
		25,28	62	44										3	3	18
		30,32,35,38	82	60												12
		40,42	112	84												12
GCT2	1400	22,24	52	—	150	145	118	108	77	68	52	30	80	20	4	—	9.78	7.48	0.0021	0.0016	0.09	0.06
		25,28	62	—										10	3	—
		30,32,35,38	82	60										3		16
		40,42,45,48,50,55,56	112	84
GCT3	2800	22,24	52	—	170	165	140	125	90	80	54	30	80	33	7	—	16.7	12.2	0.047	0.033	0.17	0.1
		25,28	62	—										23	3
		30,32,35,38	82	60										3		25
		40,42,45,48,50,55,56	112	84												16
		60,63	142	107
GCT4	5000	30,32,35,38	82	—	200	195	160	145	112	90	58	30	100	13	3	—	25.6	19.6	0.098	0.073	0.25	0.15
		40,42,45,48,50,55,56	112	84										3		17
		60,63,65,70,71,75	142	107
		80	172	132
GCT5	8000	30,32,35,38	82	—	225	215	180	168	128	100	63	30	100	23	3	—	35	26.1	0.175	0.126	0.35	0.22
		40,42,45,48,50,55,56	112	84										3		19
		60,63,65,70,71,75	142	107
		80,85,90	172	132
GCT6	11200	32,35,38	82	—	245	230	200	185	145	112	67	30	100	35	5	—	51.6	38	0.295	0.213	0.4	0.29
		40,42,45,48,50,55,56	112	—										5		—
		60,63,65,70,71,75	142	107												20
		80,85,90,95	172	132
		100	212	167
GCT7	16000	32,35,38	82	—	272	265	230	210	160	122	74	30	120	45	5	—	68.6	45	0.53	0.35	0.6	0.44
		40,42,45,48,50,55,56	112	—										15		—
		60,63,65,70,71,75	142	107										5		20
		80,85,90,95	172	132
		100110	212	167
GCT8	22400	55,56	112	—	290	272	245	225	176	136	81	30	120	29	5	—	79.5	55.8	0.71	0.46	0.75	0.55
		60,63,65,70,71,75	142	107										5		34
		80,85,90,95	172	132												20
		1.0011E+11	212	167
GCT9	28000	65,70,71,75	142	107	315	305	265	245	190	140	88	30	155	5	5	38	106.5	80.5	1.05	0.77	1	0.79
		80,85,90,95	172	132												28
		100,110,120,125	212	167
		130,140	252	202
GCT10	45000	75	142	一	355	340	300	280	225	165	98	30	155	28	5	—	158.8	121.8	1.87	1.54	1.3	0.9
		80,85,90,95	172	132										5		38
		100,110,120,125	212	167												28
		130,140,150	252	202
		160	302	242
GCT11	63000	85,90,95	172		412	385	345	325	256	180	112	40	175	15	8	—	216.6	169.6	3.71	2.82	1.6	1.23
		100,110,120,125	212	167										8		32
		130,140,150	252	202
		160,170,180	302	242
GCT12	90000	120,125	172	167	440	435	375	360	288	210	125	40	205	8	8	45	305.3	245.3	6.43	4.84	2.6	1.9
		130,140,150	212	202												32
		160,170,180	252	242
		190,200	302	282
GCT13	125000	140,150	252	202	490	480	425	400	320	235	136	50	205	8	8	38	394.5	313.5	10.58	7.9	3.3	2.4
		160,170,180	302	242												32
		190,200,220	352	282
GCT14	180000	160,170,180	302	242	545	540	462	440	362	265	158	50	240	10	10	32	529.5	430.5	17.72	13.78	4.8	3.7
		190,200,220	352	282												10
		240,250,260	410	330
GCT15	250000	160,170,180	302	242	580	—	488	—	400	280	—	50	240	10	—	43	684.5	—	25.25	—	5	—
		190,200,220	352	282												32
		240,250,260	410	330												10
		280	470	380
GCT16	315000	180	302	242	650	—	560	—	440	300	—	50	240	12	—	63	948.2	—	43.7	—	7	—
		190,200,220	352	282												32
		240,250,260	410	330												12
		280,300	470	380
GCT17	400000	200,220	352	282	690	—	600	—	460	325	—	50	280	12	—	48	1059	—	57.37	—	8	—
		240,250,260	410	330												12
		280,300,320	470	380
GCT18	500000	220	352	282	750	—	650	—	510	350	—	60	280	12	—	73	1399	—	59.37	—	10	—
		240,250,260	410	330												12
		280,300,320	470	380
		340,360	550	450
GCT19	630000	240,250,260	410	330	775	—	690	—	595	372	—	60	350	12	—	12	1544	—	110.2	—	11	—
		280,300,320	470	380
		340,360,380	550	450
GCT20	800000	260	410	330	825	—	730	—	580	392.5	—	60	350	14		14	2099	—	166.1	—	13	—
		280,300,320	470	380
		340,360,380	550	450
		400	650	540
GCT21	900000	280,300,320	470	380	925	—	825	—	620	405	—	60	350	14	—	14	2482	—	244.7	—	20	—
		340,360,380	550	450
		400,420,440	650	540
GCT22	1000000	320	470	380	950	—	850	—	665	410	—	60	400	14	—	14	2797	—	299.2	—	26	—
		340,360,380	550	450
		400,420,440,450,460	650	540
GCT23	1120000	360,380	550	450	1030	—	900	—	710	440	—	60	400	14	—	14	3183	—	388.8	—	29	—
		400,420,440,450,460,480,500	650	540
GCT24	1400000	380	550	450	1060	—	925	—	730	450	—	70	400	16	—	16	3801	—	482	—	32	—
		400,420,440,450,460,480,500	650	540
		520	800	680
