T63 snake spring coupling with brajke disc

Home / Products / Flexible Couplings with Metal Elastic Elements / T63 snake spring coupling with brajke disc

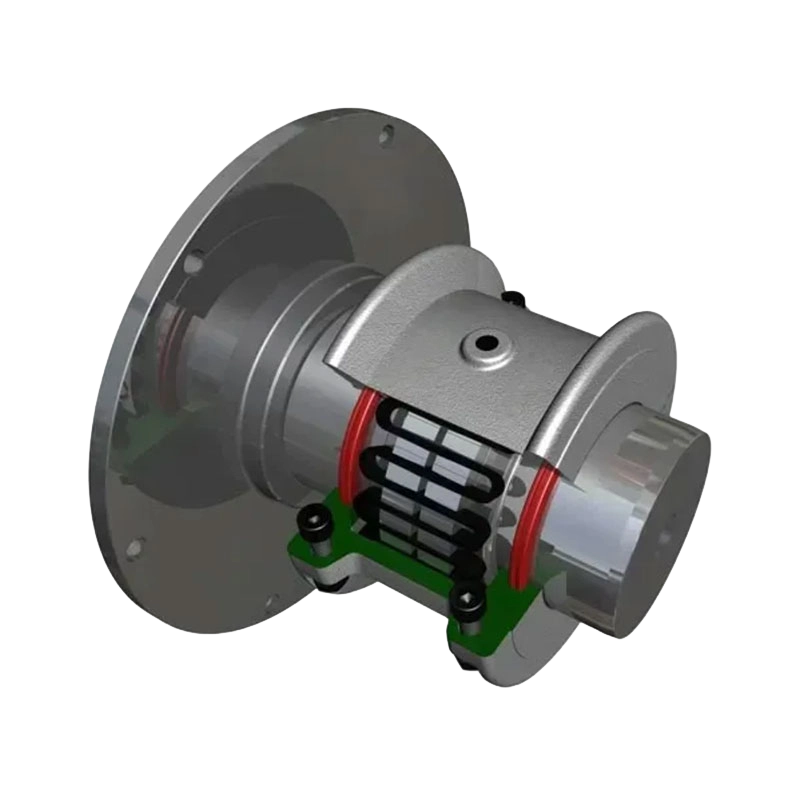

T63 snake spring coupling with brajke disc

T63 snake spring coupling with brajke disc

Overview: The T63 Snake Spring Coupling with Brake Disc is a cutting-edge engineering marvel designed to provide exceptional performance in various industrial applications. This coupling system seamlessly integrates the flexibility of snake springs with the braking efficiency of high-quality discs, offering a reliable and efficient solution for power transmission and motion control.

Key Features:

  • Snake Spring Technology: The T63 coupling employs snake spring technology, known for its flexibility and torsional vibration-damping capabilities. This unique design ensures smooth power transmission, minimizes backlash, and enhances the overall operational stability of machinery.
  • High-Quality Brake Disc: Incorporated into the coupling system is a robust brake disc, engineered to deliver precise and reliable braking performance. This feature is particularly beneficial in applications where quick stops and controlled deceleration are crucial for safety and operational efficiency.
  • Versatility: The T63 coupling is versatile and adaptable to a wide range of applications, including but not limited to industrial machinery, conveyor systems, and power generation equipment. Its ability to handle varying loads and torque levels makes it an ideal choice for demanding industrial environments.
  • Easy Maintenance: Designed with user convenience in mind, the T63 coupling with brake disc is easy to install and maintain. Accessible components and a user-friendly design contribute to reduced downtime and increased overall efficiency.
  • Corrosion Resistance: Constructed from high-quality materials, the coupling and brake disc are resistant to corrosion, ensuring a longer service life even in harsh operating conditions. This feature enhances the durability of the product, making it a cost-effective choice for industries with demanding environments.
  • Precision Engineering: Every component of the T63 coupling system is precision-engineered to meet or exceed industry standards. The meticulous attention to detail in the manufacturing process ensures consistent and reliable performance under various operating conditions.
  • Customization Options: Recognizing the diverse needs of different industries, the T63 coupling is available with customization options. This allows users to tailor the coupling system to specific torque, speed, and space requirements, ensuring optimal performance for their unique applications.

Applications:

The T63 Snake Spring Coupling with Brake Disc finds applications in industries such as manufacturing, mining, energy, and more. Its versatility and performance make it a preferred choice for systems where torque transmission, vibration damping, and controlled braking are critical.

Conclusion:

The T63 Snake Spring Coupling with Brake Disc combines advanced technology with precision engineering to deliver a reliable and versatile solution for industrial power transmission needs. Its innovative design, durability, and ease of maintenance position it as a top choice for industries seeking high-performance coupling systems.
