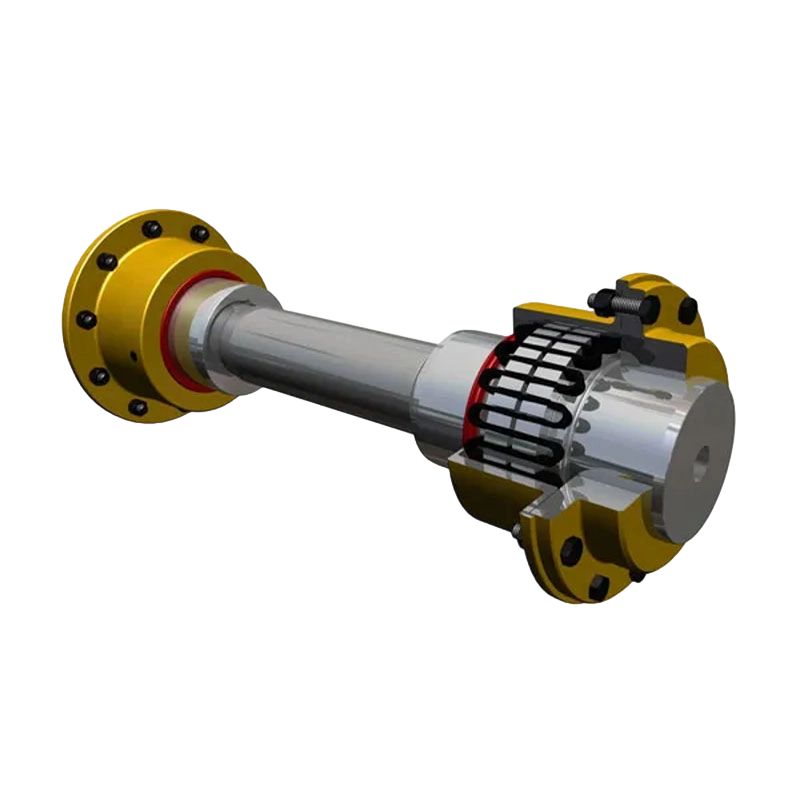

T50 snake spring coupling with connect shaft

T50 snake spring coupling with connect shaft

A snake spring coupling with a connecting shaft is a mechanical device used in power transmission applications to connect two shafts, allowing them to transmit torque while accommodating misalignment, vibration, and other movement irregularities. This type of coupling is known for its flexibility, durability, and ability to operate under various conditions, making it ideal for a range of industrial applications.

Design and Structure

  • Snake Spring: The central feature of this coupling is the snake spring, which is a helical coil or series of coils that can flex in multiple directions. This spring allows the coupling to accommodate angular, parallel, and axial misalignment between connected shafts.
  • Connecting Shaft: The coupling connects to the shafts of the driving and driven machinery via flanges or hubs that secure the ends of the snake spring. The connecting shaft transmits the rotational motion and torque from one shaft to the other.
  • Materials: Typically, the snake spring is made from high-strength, fatigue-resistant materials such as steel or specialized alloys. The hubs or flanges are usually crafted from steel, stainless steel, or other robust metals to ensure durability and reliability.

Functionality and Benefits

  • Flexibility: The snake spring's inherent flexibility allows it to absorb shocks, vibrations, and minor misalignments that occur during operation, protecting both the coupling and the connected machinery.
  • Durability: Designed to withstand high levels of stress and fatigue, snake spring couplings have a long operational life, even in demanding environments.
  • Maintenance: These couplings generally require minimal maintenance due to their simple yet effective design. Periodic inspections and lubrication (if necessary) are usually sufficient to keep them in optimal working condition.
  • Performance: Snake spring couplings provide consistent and reliable torque transmission, with minimal backlash and high torsional rigidity, ensuring efficient power transfer between shafts.

Applications

Snake spring couplings are widely used in various industrial sectors, including:

  • Manufacturing: To connect motor-driven equipment such as conveyors, mixers, and pumps.
  • Automotive: In driveline systems to connect transmission shafts, ensuring smooth power delivery.
  • Aerospace: For connecting shafts in engine and control systems, where precise torque transmission and flexibility are crucial.
  • Marine: In ship propulsion systems and auxiliary machinery, where they must withstand harsh operating conditions.

Advantages

  • Versatility: Suitable for a broad range of applications due to their ability to handle different types of misalignment and operational conditions.
  • Shock Absorption: Effective in dampening vibrations and shocks, which protects connected equipment and extends its lifespan.
  • Cost-Effective: Offering a balance of performance, durability, and low maintenance needs, snake spring couplings provide a cost-effective solution for many industrial coupling requirements.

Considerations

  • Alignment: While the snake spring coupling can accommodate misalignment, excessive misalignment can still lead to premature wear or failure. Proper installation and alignment are crucial.
  • Load Capacity: It's important to select a coupling with the appropriate load capacity for the specific application to avoid overloading and potential damage.

Conclusion
Snake spring couplings with connecting shafts are a robust and flexible solution for power transmission needs in various industries. Their ability to handle misalignments, absorb shocks, and provide reliable torque transmission makes them a valuable component in ensuring the smooth operation of mechanical systems. When chosen and maintained correctly, these couplings can significantly enhance the performance and longevity of connected machinery.
