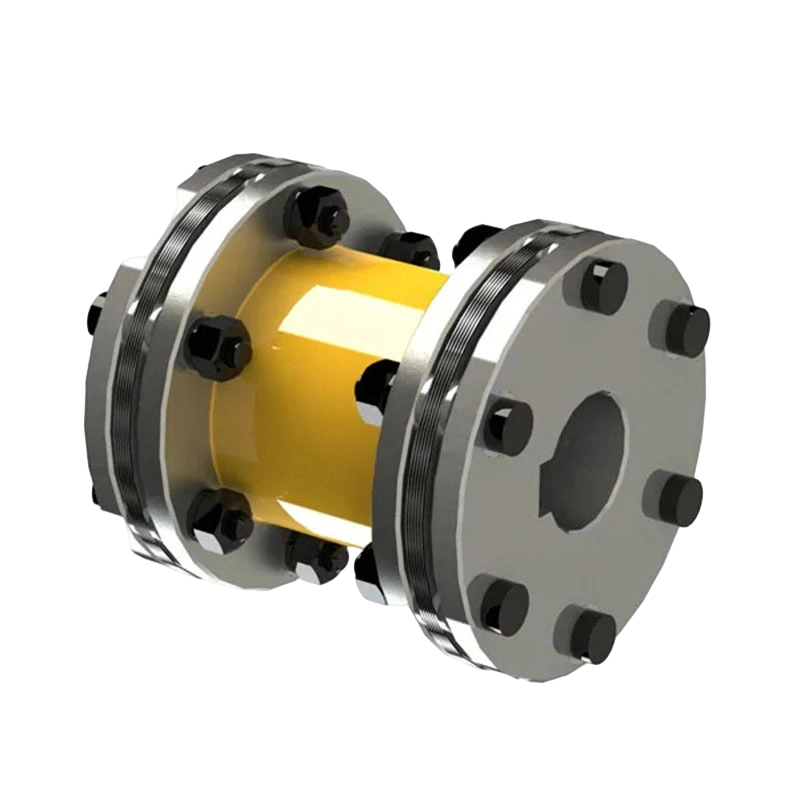

JMJ Double Half Reverse Diaphragm Coupling

JMJ Double Half Reverse Diaphragm Coupling

Introduction: The JMJ Double Half Reverse Diaphragm Coupling represents a pinnacle in precision engineering and innovation for mechanical power transmission systems. Engineered with excellence and constructed with high-quality materials, this coupling offers superior performance, flexibility, and reliability, making it an indispensable component across various industrial applications.

Key Features:

  • Double Half Design: The JMJ Double Half Reverse Diaphragm Coupling is distinguished by its symmetrical double-half design. This innovative construction enhances its balance, stability, and versatility in accommodating misalignments, providing a robust solution for demanding industrial environments.
  • Reverse Diaphragm Configuration: At the heart of its design is the reverse diaphragm configuration, a feature that optimizes torque transmission and compensates for shaft misalignments. This configuration ensures efficient power transmission while minimizing stress concentrations, resulting in prolonged coupling life.
  • Premium Materials: Crafted from high-grade materials such as stainless steel or alloy steel, the JMJ coupling boasts exceptional strength, corrosion resistance, and durability. This ensures consistent performance even in harsh operating conditions, contributing to the longevity of the coupling.
  • Precision Manufacturing: Each component of the JMJ coupling undergoes precision machining, maintaining tight tolerances for optimal performance. This meticulous manufacturing process reduces wear and tear, further enhancing the coupling's durability and reliability.
  • High Torque and Misalignment Capacity: The coupling is designed to handle high torque loads efficiently, making it suitable for applications with demanding power requirements. Additionally, its ability to accommodate misalignments between shafts ensures smooth operation and extends the life of connected equipment.
  • Ease of Maintenance: The coupling's well-thought-out design facilitates easy maintenance and replacement of components when needed. This feature minimizes downtime, contributing to increased productivity and cost-effectiveness for end-users.

Applications:

The JMJ Double Half Reverse Diaphragm Coupling finds application in a wide array of industries and machinery, including:

  • Heavy Machinery: Suitable for use in heavy machinery such as crushers, mills, and extruders.
  • Oil and Gas Industry: Ideal for critical applications in the oil and gas sector, including pumps, compressors, and drilling equipment.
  • Marine Applications: Well-suited for marine propulsion systems, ensuring reliable power transmission in diverse maritime conditions.
  • Steel and Metal Processing: With its robust design, the coupling is apt for use in steel and metal processing machinery.

Conclusion:

In conclusion, the JMJ Double Half Reverse Diaphragm Coupling stands as a pinnacle of engineering excellence, offering a reliable and efficient solution for power transmission in demanding industrial settings. Its double-half design, combined with the reverse diaphragm configuration, ensures optimal performance, longevity, and versatility across a range of applications. Whether in heavy industry, oil and gas, marine, or metal processing, the JMJ coupling sets a high standard for reliability and operational efficiency, contributing to the success of diverse industrial operations.
