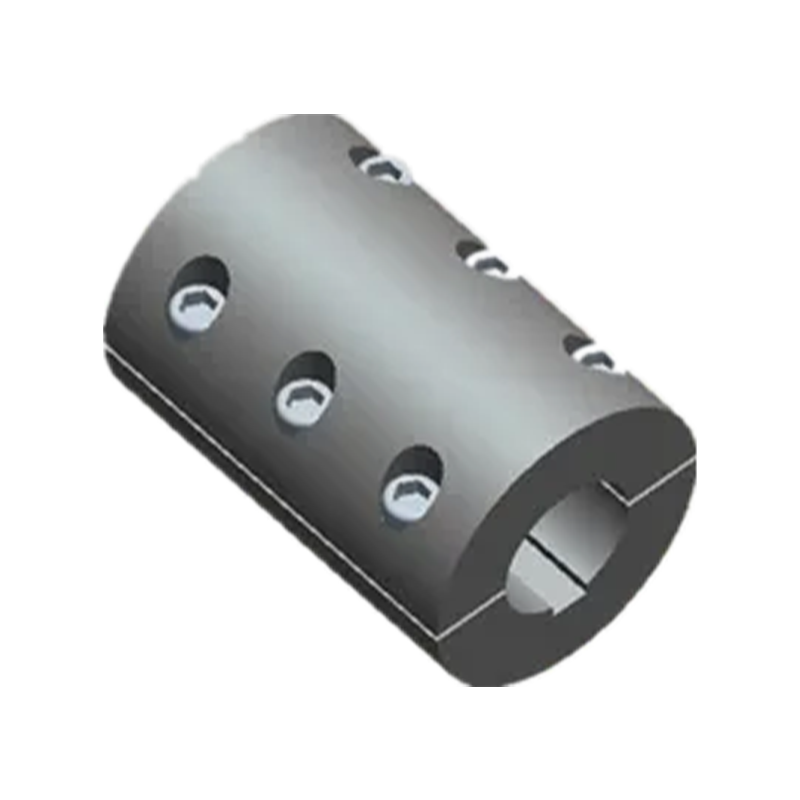

JK/JKW type clamp coupling

Home / Products / Rigid Coupling / JK/JKW type clamp coupling
JK/JKW type clamp coupling

JK/JKW type clamp coupling

Overview
JK/JKW type clamp couplings are mechanical devices used to connect two rotating shafts, allowing for the transmission of torque and rotational motion while accommodating some degree of misalignment between the shafts. These couplings are characterized by their clamping mechanism, which securely holds the shafts without the need for keyways or additional machining. This design facilitates easy installation and removal, making them a preferred choice in various industrial applications.

Design and Construction
Components:

  • Clamp Hub: The main body of the coupling, typically made from high-strength materials such as steel or aluminum.
  • Bolts/Screws: High-tensile bolts or screws used to tighten the clamp and secure the coupling to the shafts.
  • Bore: Precision-machined holes in the clamp hubs to fit the shafts.
  • Flexible Element (Optional): Some designs include a flexible element to absorb shock and accommodate slight misalignment.

Types:

  • JK Type: Standard clamp coupling, primarily used for general applications where alignment is relatively precise.
  • JKW Type: A variant designed to accommodate greater misalignment and provide additional flexibility, often incorporating a flexible element.

Features and Benefits

  • Easy Installation and Removal: The clamping mechanism allows for quick and straightforward installation without the need for special tools or machining.
  • High Torque Transmission: Capable of transmitting high levels of torque, making them suitable for heavy-duty applications.
  • Alignment Compensation: Can handle minor misalignments between shafts, reducing the risk of equipment damage and wear.
  • No Keyway Required: Eliminates the need for keyways, reducing machining costs and simplifying assembly.
  • Versatility: Suitable for a wide range of shaft sizes and can be used in various industrial settings, including automotive, manufacturing, and machinery.

Features and Benefits

  • Easy Installation and Removal: The clamping mechanism allows for quick and straightforward installation without the need for special tools or machining.
  • High Torque Transmission: Capable of transmitting high levels of torque, making them suitable for heavy-duty applications.
  • Alignment Compensation: Can handle minor misalignments between shafts, reducing the risk of equipment damage and wear.
  • No Keyway Required: Eliminates the need for keyways, reducing machining costs and simplifying assembly.
  • Versatility: Suitable for a wide range of shaft sizes and can be used in various industrial settings, including automotive, manufacturing, and machinery.

Applications

  • Machinery and Equipment: Used in conveyors, mixers, pumps, and other machinery requiring reliable torque transmission.
  • Automotive Industry: Utilized in drivetrains and other rotational systems where high precision and torque are required.
  • Manufacturing: Employed in various manufacturing processes where easy assembly and disassembly of components are advantageous.
  • Robotics: Applied in robotic arms and automation systems to ensure smooth and precise movement.

Installation and Maintenance

  • Installation:
    Align the shafts to be connected.
    Slide the clamp coupling onto the shafts.
    Tighten the clamping bolts/screws to the specified torque, ensuring a secure fit.
    Verify alignment and make adjustments if necessary.
  • Maintenance:
    Regularly inspect the coupling for signs of wear or damage.
    Check the tightness of the clamping bolts/screws periodically.
    Replace any worn or damaged components promptly to prevent failure.

Advantages

  • Reduced Downtime: Quick installation and removal reduce machine downtime during maintenance or replacement.
  • Cost-Effective: Eliminates the need for keyways and reduces machining costs.
  • Durability: Made from robust materials that ensure long service life and reliable performance.

Disadvantages

  • Limited Misalignment Handling: While they can accommodate minor misalignments, excessive misalignment can lead to premature wear or failure.
  • Initial Cost: Higher initial cost compared to simpler coupling designs, although this is offset by reduced maintenance and downtime.

Conclusion
JK/JKW type clamp couplings are essential components in various industrial applications, offering a reliable and efficient means of connecting rotating shafts. Their ease of installation, high torque transmission capacity, and ability to handle minor misalignments make them a popular choice in settings where precision and durability are critical.
