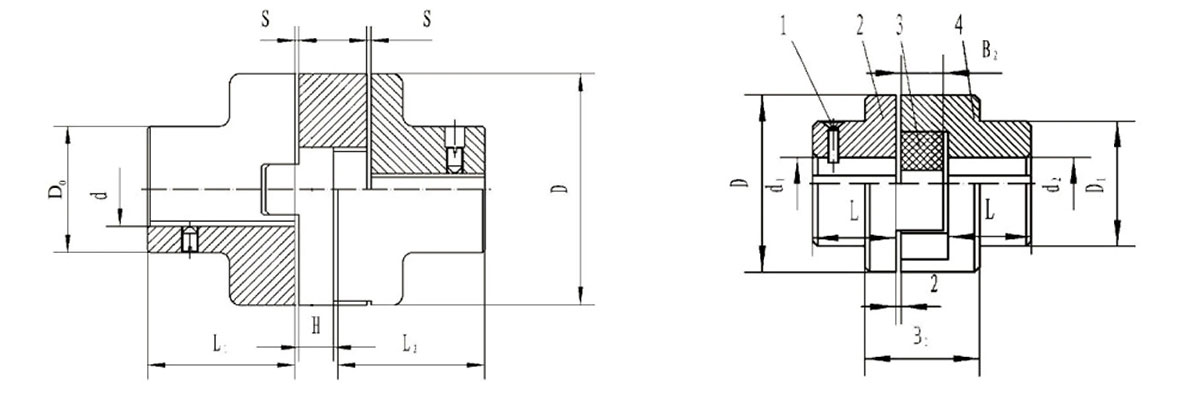

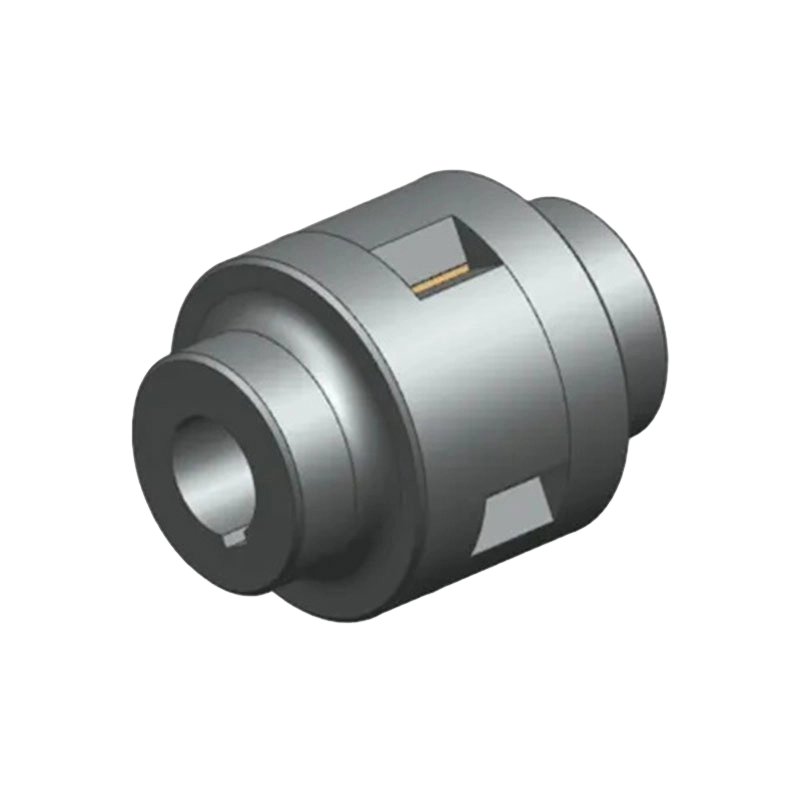

HN type slider coupling

HN type slider coupling

Introduction: The HN type slider coupling is a precision-engineered mechanical coupling system designed to transmit torque between two shafts while accommodating angular misalignment and parallel misalignment. With its innovative slider design, this coupling offers exceptional flexibility, reliability, and ease of installation, making it a preferred choice for various industrial applications.

Key Features:

  • Slider Design: The HN coupling features a slider mechanism that allows for angular misalignment compensation while maintaining parallel alignment between the connected shafts. This design ensures smooth power transmission and reduces stress on connected machinery components, enhancing overall system reliability.
  • Parallel Misalignment Compensation: In addition to angular misalignment compensation, the HN coupling can also accommodate parallel misalignment between the connected shafts. This capability is crucial in applications where precise alignment is challenging or subject to change due to operational conditions.
  • High Torque Transmission: Manufactured from high-strength materials such as stainless steel or aluminum alloy, the HN coupling offers exceptional torque transmission capabilities, making it suitable for demanding industrial applications requiring high power transmission.
  • Low Backlash: The precision-engineered construction of the HN coupling minimizes backlash, ensuring precise and efficient torque transmission without unnecessary play or slack. This low backlash design is particularly beneficial in applications requiring accurate positioning and motion control.
  • Corrosion Resistance: With its corrosion-resistant materials and coatings, the HN coupling offers excellent durability and reliability even in harsh operating environments. This corrosion resistance ensures long-term performance and minimizes maintenance requirements, reducing downtime and associated costs.
  • Compact and Lightweight: The HN coupling's compact and lightweight design minimizes space requirements and reduces the overall weight of connected machinery, making it ideal for applications where space is limited or weight savings are desirable.

Applications:

  • Machine Tools
  • Robotics and Automation Systems
  • Packaging Machinery
  • Printing Equipment
  • Material Handling Systems
  • Textile Machinery
  • Food Processing Equipment
  • Automotive Manufacturing

Conclusion: The HN type slider coupling offers a reliable and flexible solution for transmitting torque in various industrial applications. With its innovative slider design, parallel misalignment compensation, high torque transmission capabilities, and corrosion resistance, it provides unmatched performance and durability, ensuring smooth and efficient operation of connected machinery and equipment. Whether in machine tools, robotics, packaging machinery, or automotive manufacturing, the HN coupling delivers the precision, reliability, and flexibility needed to meet the demanding requirements of modern industrial applications.

Contact Us
PDF Download
  • HN type slider coupling
PREV: SWC-WF type large size universal coupling without expansion flange
NEXT: HJ type cross slider coupling(Q/YH 18033X-2018)
Product Parameters
