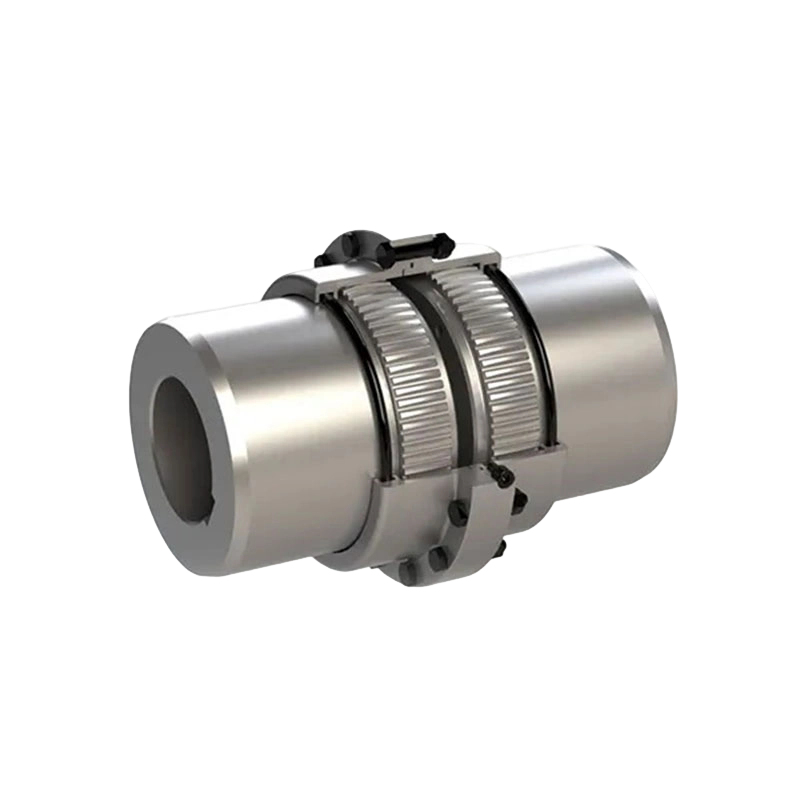

GB Drum gear coupling(Q/YG11001X-2018)

Product Core Overview:

The GB-type Drum-shaped Gear Coupling (Standard: Q/YG11001X-2018) is a high-end power transmission solution manufactured by MCC Heavy Industry Technology (Zhenjiang) Co., Ltd. As a pioneering product in the field of mechanical transmission, it redefines the efficiency, reliability, and durability of industrial coupling systems through precise gear design and innovative engineering technology.

Exceptional Design and Engineering Features:

1. Robust Construction and Impact Resistance: Manufactured using high-grade materials, this product possesses exceptional toughness. It operates stably under medium, heavy, and even extreme load conditions—including those involving severe impact—thereby ensuring long-term operational reliability and quality.

2. Optimized Gear Geometry: Utilizing advanced drum-shaped gear machining technology, this coupling features optimized gear geometry. This design not only significantly enhances torque transmission capacity but also reduces wear by minimizing frictional losses, resulting in smoother power transmission and extended maintenance intervals.

3. High-Precision Manufacturing and Vibration Reduction: Every component undergoes rigorous quality control to ensure exceptional dimensional accuracy and perfect alignment. This precise engineering design effectively mitigates operational vibrations, thereby boosting the overall efficiency of the entire transmission system.

4. Outstanding Environmental Adaptability: Designed to withstand harsh industrial environments, the product features a special anti-corrosion surface coating. This treatment ensures peak performance even in humid or corrosive settings, significantly extending the service life of the equipment.

5. Convenient Installation and Low Maintenance Requirements: The design prioritizes ease of on-site operation; its intuitive structure makes installation quick and simple, thereby minimizing downtime. Furthermore, its low-maintenance characteristics generate substantial long-term operational cost savings for businesses.

Extensive Range of Technical Specifications:

The GB series couplings offer a comprehensive range of models, spanning from GB1 to GB25, capable of meeting the diverse requirements of applications ranging from small-scale precision equipment to ultra-heavy-duty industrial systems.

1. In terms of torque performance, the series covers an exceptionally wide range of nominal torques, starting at 0.63 kN·m (GB1) and reaching up to 5600 kN·m (GB25).

2. In terms of rotational speed adaptability, smaller models support a maximum permissible speed of up to 6,500 r/min, while ultra-large models maintain stable operation even under low-speed, heavy-load conditions.

3. Regarding dimensional compatibility, the range of bore diameters extends from a minimum of 16 mm to a maximum of 1,040 mm, while bore lengths vary from 45 mm to 900 mm.

4. The product line also demonstrates an immense range in terms of weight and volume; unit weights span from a lightweight 3.0 kg to a massive 22.38 tons, allowing for precise matching with diverse physical installation environments.

Diverse Industrial Application Scenarios

Thanks to their exceptional versatility, GB-type couplings have been widely adopted across the following key sectors:

1. Heavy Machinery & Metallurgy: Particularly well-suited for applications such as steel rolling mills and mining equipment, providing sustained power delivery during high-intensity operations.

2. Material Handling & Lifting: Ensures safe and smooth material movement within cranes, conveyor systems, and various lifting mechanisms.

3. Fluid Equipment & General Industry: Provides efficient coupling support for large-scale industrial pumps, compressors, papermaking machinery, and port handling equipment.
